SprinklerShield™ Racking Safety Wire
- Improved Forklift Safety
- High-Visibility Design
- Cost-Effective Protection
Prevent Costly Damage With Racking Safety Wire
The SprinklerShield™ is a high-visibility racking safety wire system designed to provide an immediate physical and visual warning to forklift operators.
Acting as a robust first line of defence, it alerts drivers before a collision occurs with pallet racking or sensitive sprinkler systems – significantly reducing the risk of structural damage and expensive warehouse downtime.
Download Datasheets
Want to learn a little bit more about our products? Explore our FREE datasheets.
Why Choose SprinklerShield™?
Due to changes in sprinkler regulations, some sprinkler heads within racking are now exposed to a greater risk of accidental damage. Should a sprinkler head get caught, the potential cost and downtime would be significant.
SprinklerShield™ reduces this risk by providing:
-
Significant Driver Feedback: The 3mm steel wire rope is designed to provide tactile resistance, alerting the forklift driver immediately upon contact.
- High Visibility: Encased in an 8mm high-visibility yellow oversleeve, the system is easily seen even in low-light warehouse environments.
- Proven Strength: Rigorously tested to withstand high levels of force, ensuring it doesn't just snap on first contact but provides a controlled deflection.
- Quick Installation: Utilising industry-standard Gripple HF3 fasteners for easy threading through racking bracing holes and secure tensioning.
- Cost-Effective Protection: A simple, scalable solution to protect against the catastrophic costs of triggered sprinkler systems or racking collapse.
How the Racking Safety Wire Works

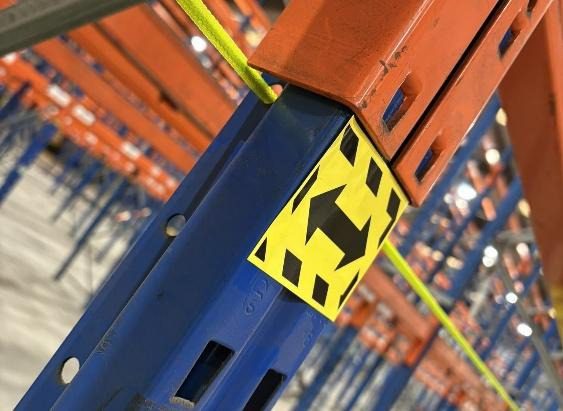

The SprinklerShield™ is threaded through the bracing holes of your existing racking frames. It is tensioned to a minimum level to maintain a straight line across the bays.
If a forklift load enters the bay too deeply, it strikes the wire. The wire deflects up to 400mm, creating a heavy resistance that the driver can feel through the vehicle. This “physical feedback loop” is often enough to stop an accident before it happens.
Supply Options
If you have a few bays of sprinkler heads to protect, we supply SprinklerShield in kit for you to install for only £49.95. Each kit takes under 10 minutes to install, and a full installation guide is available here.
The kit includes everything you need to protect your sprinkler heads from a strength and visual point of view.
However, If you have a larger project, please contact us for a supply and installation quotation.
Get in touch
Not sure which one is the best option? Drop us a message, and we can advise.

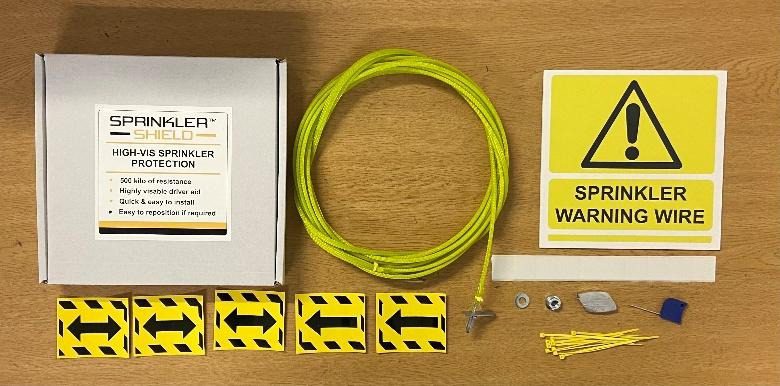

Each kit contains:
- 3 mm wire rope with either 8 mm stud end or carabiner clip (if the wire end you have does not suit your racking please ring 01925 710923 for support)
- Yellow sleeve (pre-fitted)
- Small yellow cable ties
- No.3 Gripple release key
- 8 mm washer
- 8 mm serrated flange nut
- 2 single-arrow yellow level labels
- 3 double-arrow yellow level labels
- 200 mm rack-end warning sign
- Double-sided adhesive pads
Technical Specifications & Testing
We believe in safety backed by data. The SprinklerShield™ has undergone extensive testing across multiple 2700mm bays to ensure performance under typical use collision scenarios.
Feature | Specification |
Wire Construction | 3mm (7×7 configuration) Steel Wire Rope |
Outer Sleeve | 8mm High-Visibility Yellow Protective Oversleeve |
Fixing System | Gripple HF3 through bracing holes |
Average Breaking Strain | 516 Kg (Tested over 3 failure points) |
Max Deflection | Approx. 400mm before wire failure |
Standard Configuration | Spans 3 bays of 2700mm clear entry racking |
The Result: Our testing concludes that the SprinklerShield™ provides over 500kg of load resistance, offering the forklift truck driver ample time to stop or adjust before impacting the racking structure.
Get a Racking Safety Wire Quote
We don’t share your details with any third-parties.
Enhance Forklift Safety
Ready to Secure Your Warehouse?
Protect your infrastructure and your team with the SprinklerShield™. Whether you are looking to protect a single run of racking or a full distribution centre, Elan Europe provides the components and expertise you need.
SprinklerShield™ Racking Safety Wire FAQs
Below are just a few of out most frequently asked questions but you can find a lot more useful information and videos within our knowledge hub.
SprinklerShield™ is a high-visibility steel wire safety system installed across pallet racking bays to provide both a visual and physical warning to forklift operators before they enter too deeply into a bay.
When a load is placed too high into a racking bay it contacts the wire. The wire deflects and creates strong resistance (up to ~500kg), giving immediate tactile feedback so the driver can stop before hitting racking or sprinkler systems. It also is highly visible and the operator will see that he has contacted the wire and correct the level of the pallet.
Yes. The wire is encased in an 8mm high-visibility yellow oversleeve, making it easy to see even in dim warehouse conditions.
The system uses 3mm (7×7) steel wire rope with an average breaking strain of 516kg. It is designed to deflect (not break immediately), providing controlled resistance and warning.
The wire can deflect up to approximately 400mm before failure, allowing sufficient time for operators to react and prevent impact. (based on a standard kit that covers 3 bays of 2700 mm clear entry racking).
Yes. All you need is a 13 mm spanner and a pair of scissors, making installation quick and straightforward.
In most cases, yes. SprinklerShield™ is designed to integrate with standard pallet racking systems by utilising existing bracing holes. All you need is line of sight through the bracing holes at the right level. If you don’t line of sight we have other fixing options.
A standard configuration spans three 2700mm racking bays, but the system is scalable depending on your warehouse layout.
No, it works best as a complementary safety solution, adding an extra layer of protection where traditional systems fall short.
- Prevents costly sprinkler activation
- Reduces racking damage and downtime
- Improves forklift operator awareness
- Cost-effective and scalable
- Quick to install with minimal disruption
Compared to the potential costs of racking collapse, sprinkler discharge, stock loss, and operational downtime, SprinklerShield™ offers a highly economical preventative solution.
